性能与特点 ·系统设有电磁阀可加装气动调压阀，对气源进行精确控制，与润滑液充分混合雾化，减少机械刀具之损耗，冷却润滑效果更佳。 ·a .数显控制：冷却润滑时间和间歇时间均可调整。（内般有锁键功能，可锁定设置后的润滑和间歇系统时固可设定，“L U B”润滑時：也设有断电记忆功能，如工作时间设定1 6秒工作到1 4秒断电了，下次通电可以继续按1 4秒开始计时 1 -9 9 9（秒），“INT”间歇：1 - 9 9 9（秒）特殊要求可定制 ·b . P L C控制：冷却润滑时间和间歇时间由外部P L C控制 ·c .无控制：冷却润滑时和间歇时间无需控制 ·设有液位开关、当冷却润滑液不足时蜂鸣器会发出报警信号、并将异常信号输出。（数显控制器液位不足显示E R O )。 ·面板指示灯可显示出润滑和间歇状态 ·系统建议使用气压为0 . 4 - 0 . 6 M P a ·默认液体和气管直径6 m m ·配合（M P V型）自吸式冷却润滑喷雾器使用。

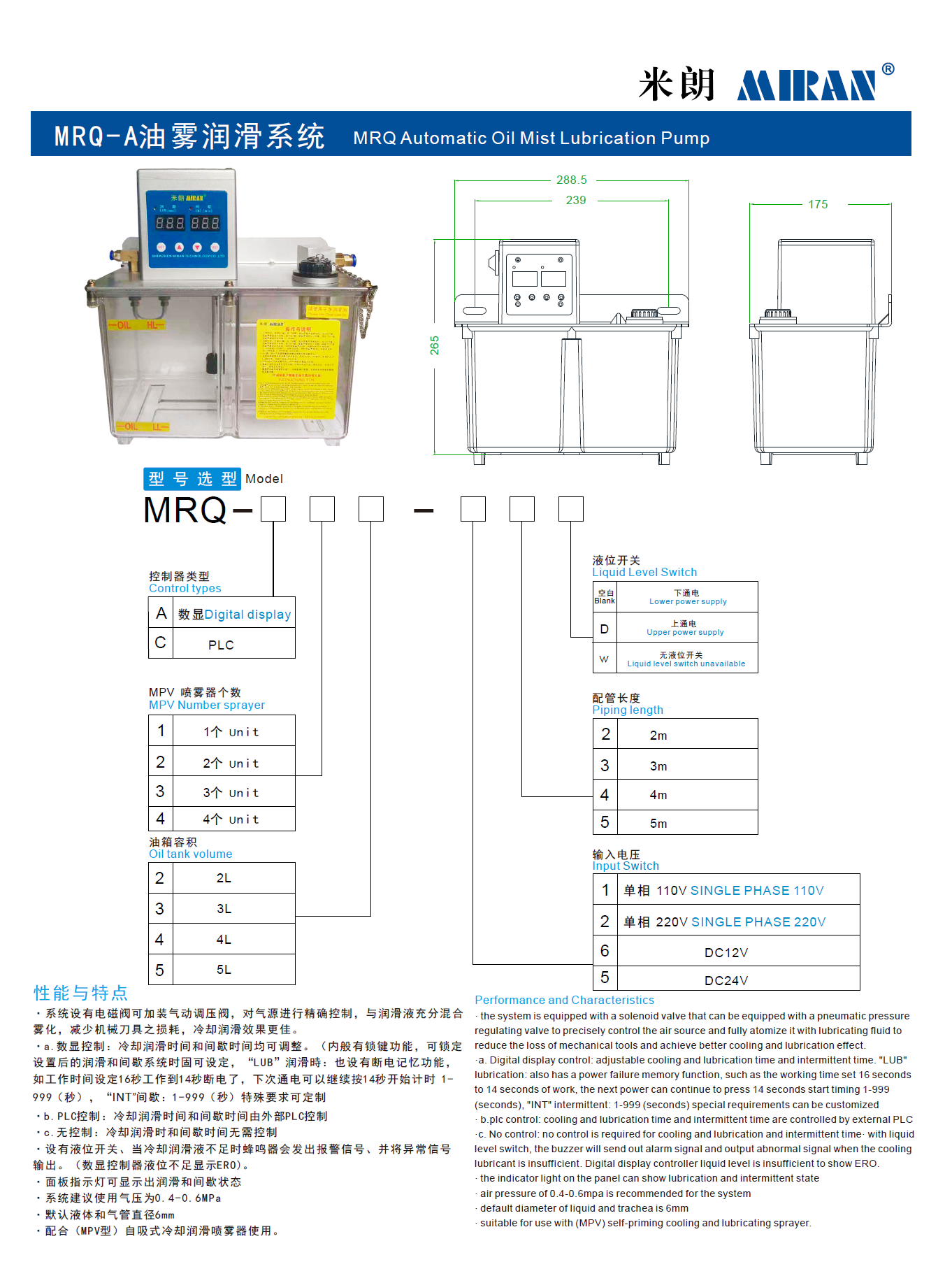

Performance and Characteristics
· the system is equipped with a solenoid valve that can be equipped with a pneumatic pressure
regulating valve to precisely control the air source and fully atomize it with lubricating fluid to
reduce the loss of mechanical tools and achieve better cooling and lubrication effect.
·a. Digital display control: adjustable cooling and lubrication time and intermittent time. "LUB"
lubrication: also has a power failure memory function, such as the working time set 16 seconds
to 14 seconds of work, the next power can continue to press 14 seconds start timing 1-999
(seconds), "INT" intermittent: 1-999 (seconds) special requirements can be customized
· b.plc control: cooling and lubrication time and intermittent time are controlled by external PLC
·c. No control: no control is required for cooling and lubrication and intermittent time· with liquid
level switch, the buzzer will send out alarm signal and output abnormal signal when the cooling
lubricant is insufficient. Digital display controller liquid level is insufficient to show ERO.
· the indicator light on the panel can show lubrication and intermittent state
· air pressure of 0.4-0.6mpa is recommended for the system
· default diameter of liquid and trachea is 6mm
· suitable for use with (MPV) self-priming cooling and lubricating sprayer.
