米朗MRG-5232微电脑型稀油油脂一体电动润滑油泵(4L油脂泵)Product introduction 您现在的位置:首 页 > 产品展示 > 产品详情

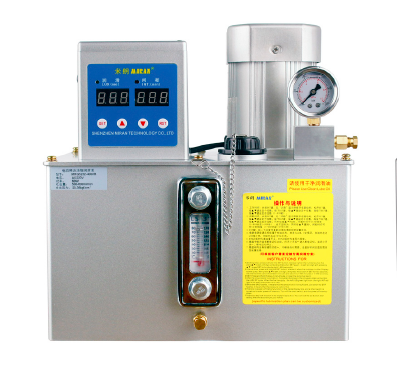

米朗MRG-5232微电脑型稀油油脂一体电动润滑油泵(4L油脂泵)
  • 产品详情
  • Product introduction

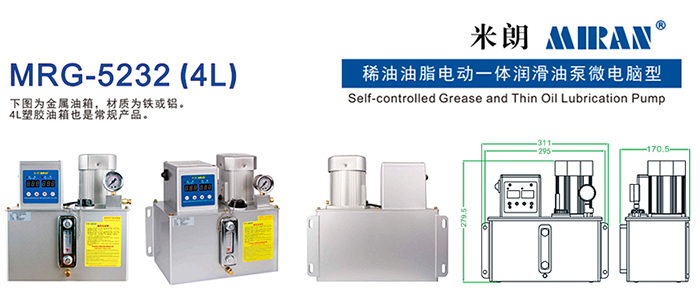

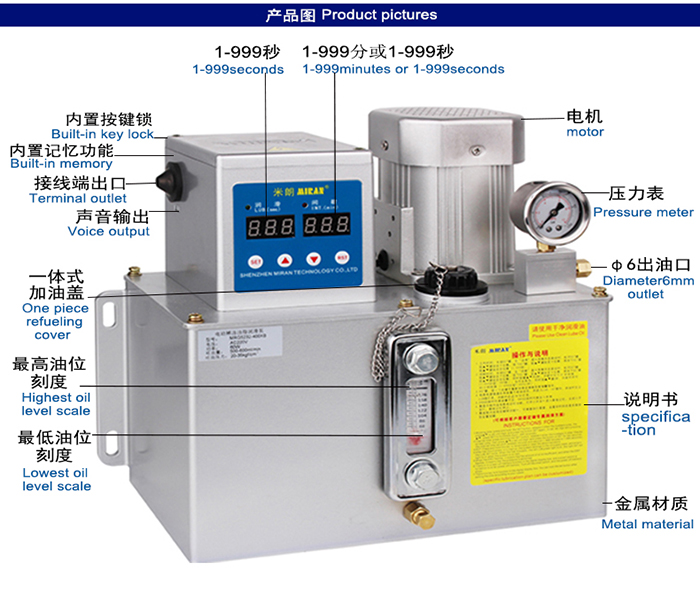

  • 米朗MRG-5232微电脑型稀油油脂一体电动润滑油泵(4L油脂泵)及尺寸图

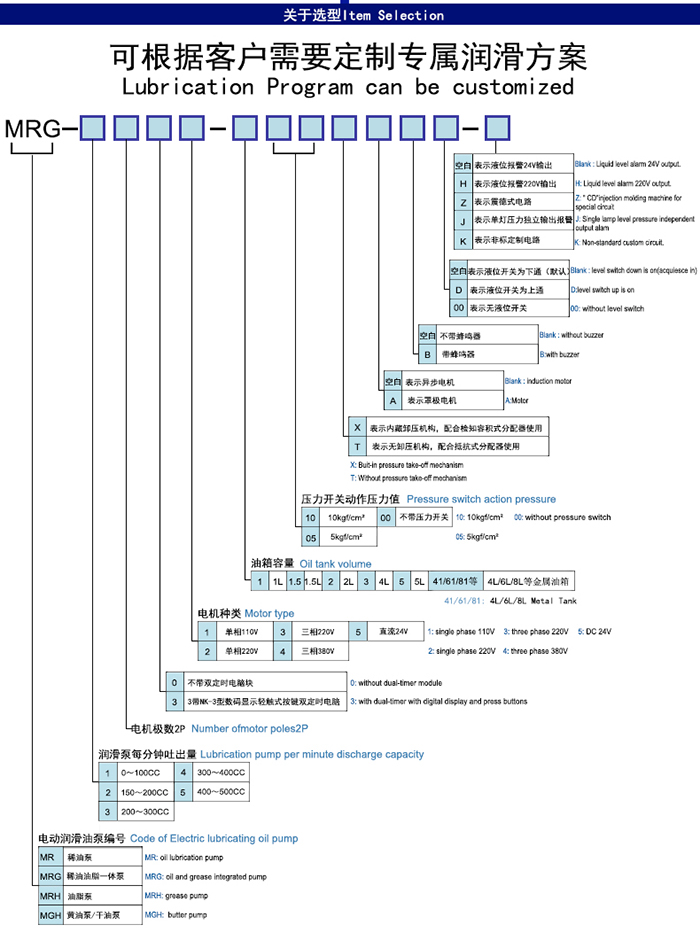

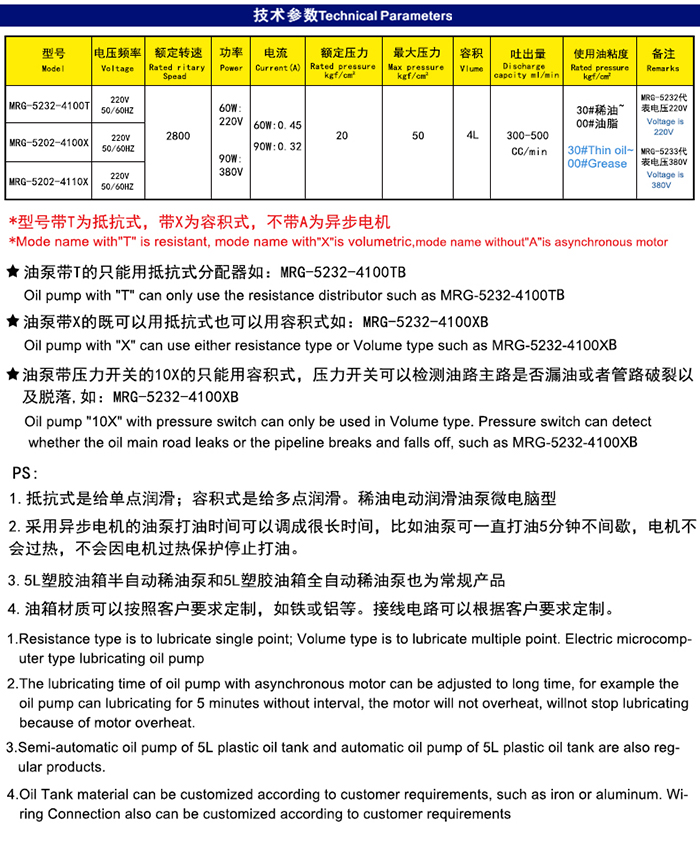

    *型号带T为抵抗式,带X为容积式
    *mode name with " T" is resistant, mode name with “X” is volumetric

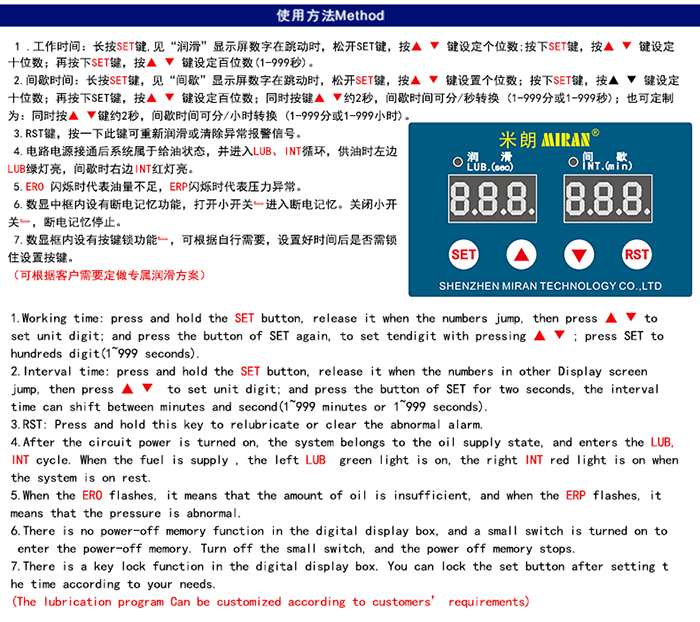

    1、工作时间:长按SET 键,见“润滑”显示屏数字在跳动时,松开SET键,按 ▲ ▼键设定个位数;按下SET键,按 ▲ ▼键设定十位数;再按下SET键,按 ▲ ▼键设定百位数( 1 - 9 9 9秒)。
    2 、间歇时间:长按SET键,见“间歇”显示屏数字在跳动时,松开SET键,按 ▲ ▼键设置个位数;按下SET键, ▲ ▼键设定十位数;再按下SET键,按 ▲ ▼键设定百位数( 1 - 9 9 9秒)。同时按▲ ▼键约2秒,间歇时间可分/秒转换 (1-9 9 9分或1 - 9 9 9秒);也可定制为:同时按▲ ▼键约2秒,间歇时间可分/小时转换(1-9 9 9分或1 - 9 9 9小时)。
    3 、 RST键,按一下此键可重新润滑或清除异常报警信号。
    4 、电路电源接通后系统属于给油状态,并进入LUBINT循环,供油时左边LUB绿灯亮,间歇时右边INT红灯亮。
    5 、 ERO闪烁时代表油量不足, ERP闪烁时代表压力异常。
    6、数显中框内设有断电记忆功能,打开小开关进入断电记忆。关闭小开关,断电记忆停止。
    7 、数显框内设有按键锁功能,可根据自行需要,设置好时间后是否需锁住设置按键。
    可根据客户需要定做专属润滑方案
    1.Working time: press and hold the SET button, release it when the numbers jump, then press▲ ▼ to set unit digit; and press the button of SET again, to set ten digit with pressing▲ ▼ ; press SETto hundreds digit(1~999 seconds).
    2.Interval time: press and hold the SET button, release it when the numbers in other Display screen jump, then press▲ ▼ to set unit digit; and press the button of SET for two seconds, the interval time can shift between minutes and second(1~999 minutes or 1~999 seconds).
    3. RST: Press and hold this key to relubricate or clear the abnormal alarm.
    4.After the circuit power is turned on, the system belongs to the oil supply state, and enters theLUB,INT cycle. When the fuel is supply , the left LUB green light is on, the right INT red light is on when the system is on rest.
    5.When the ERO flashes, it means that the amount of oil is insufficient, and when the ERP flashes, it means that the pressure is abnormal.
    6.There is no power-off memory function in the digital display box, and a small switch is turned on to enter the power-off memory. Turn off the small switch, and the power off memory stops.
    7.There is a key lock function in the digital display box. You can lock the set button after setting the time according to your needs.
    (The lubrication program Can be customized according to customers’ requirements)
