产品名称 |

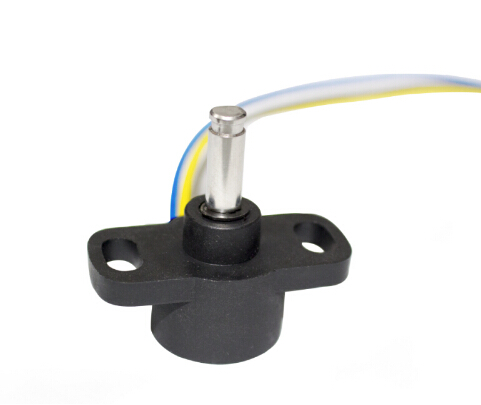

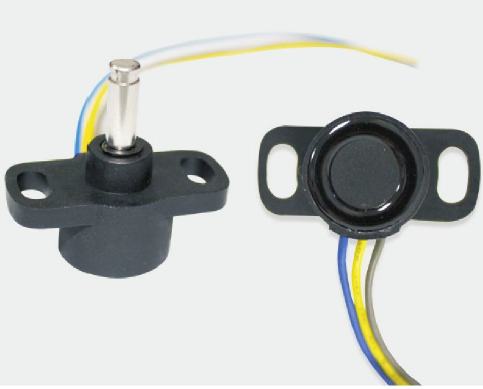

WDA-D22-A精密导电塑料电位器 |
|
|
电气参数 Electrical |
||
|
有效量程Effective stroke |
0-300° |
|
|
阻值范围Resistance Range |
0KΩ-3kΩ |
|
|
阻值变化规律Resistance Taper |
B(JIS直线 JIS LINEAR) |
|
|
线性精度Independent Linearity |
±0.3% |
|
|
输出信号Ooutput signal |
分压器Voltage divider |
|
|
重复性精度 Repeatability |
0.007° |
|
|
最大工作电压Dielectric Strength |
20V |
|
|
绝缘电阻Insulation Resistance |
10M |
|
|
分辨率Resolution |
无限大Essentially infinite |
|
|
最大工作电压Maximum Input Voltage |
20VDC |
|
|
环境参数 Environmental |
||
|
存储温度 Storage Temperature Range |
-60℃～+125℃ |
|
|
工作温度 Operating Temperature Range |
-60℃～+125℃ |
|
|
温度漂移Temperature coefficien |
9ppm/℃ |
|
|
旋转寿命Rotational Life |
100*106 |
|
|
IP防护等级 IP Range |
IP65 |
|
|
工作速度Operating speed |
10000rpm |
|
|
机械参数 Mechanical |
||
|
尺寸SIZE |

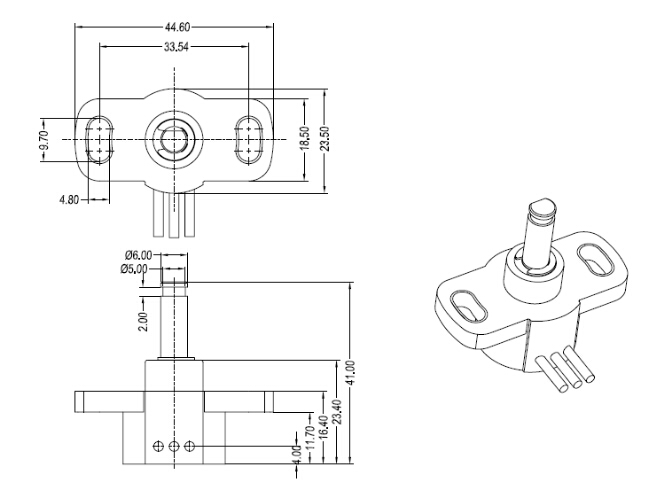

见附图SEE DRAWING |
|
|
机械行程Mechanical Travel |
连续旋转 |
|
|
外形尺寸Housing size |
φ22mm |
|
|
输出轴Output shaft |
φ6mm |
|
|
锁紧力矩Mounting Nut Torque |
15Kgf·cm |
|
|
轴跳动Shaft Runout |
0.15mm |
|
|
轴端间隙 Shaft End Play |
(出轴长度shaft length 30 mm)0.15mm |
|
|
径向间隙Shaft Radial Play |
0.15mm |
|
|
轴的推力Shaft Strength (push) |
125 N (12.75 kgf ) min. |
|
|
轴的拉力Shaft Strength (tensile) |
125 N (12.75 kgf ) min. |
|
|
配件 Hardware. |
|
|
